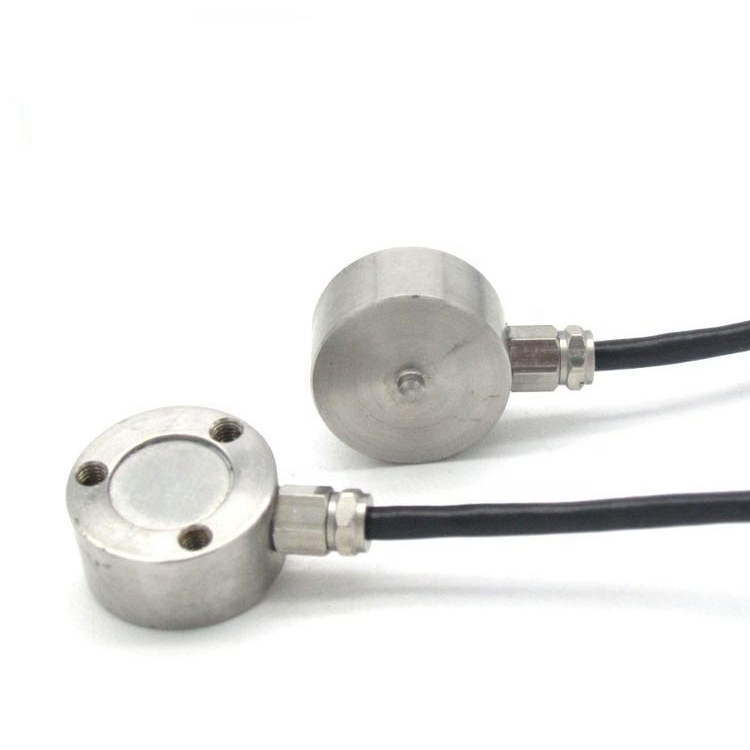

Stainless Steel Compression Load Cell 5-500kg Analog Output

Detalles del producto:

Lugar de origen:	China
Nombre de la marca:	RJ
Certificación:	CE/ROSE
Número de modelo:	RJ

Información detallada

Lugar de origen:

China

Nombre de la marca:

Certificación:

CE/ROSE

Número de modelo:

Salida:

Sensor análogo

Capacidad:

5-500 kg

Sensibilidad:

1.5±0.2 % v/v

Voltaje de la excitación:

5 ~ 12 VCC

Sobrecarga segura:

150% R.C.

El material:

Acero inoxidable

Resaltar:

High Light

Resaltar:

Stainless Steel Load Cell 500kg

Analog Output Load Cell Sensor

Compression Load Cell 5kg

Información sobre el comercio

Cantidad de orden mínima:

Precio:

$40-50

Detalles de empaquetado:

cartón o cajón de madera

Tiempo de entrega:

5 a 8 días hábiles

Condiciones de pago:

L/C, D/A, D/P, T/T, Western Union

Capacidad de la fuente:

2000PC/Month

Descripción de producto

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity	5kg-500kg
Sensitivity	0.5~1.5 mv/V
Precision	0.5 %F·S
Creep	±0.2 %F·S/30min
Non-linearity	±0.5 %F·S
Hysteresis error	±0.5 %F·S
Repeatability	±0.5 %F·S
Zero temperature coefficient	±0.2 %F·S/10℃
Temperature Effect On Output	±0.2 %F·S/10℃
Input resistance	500 ± 20 Ω
Output resistance	500 ± 20 Ω
Insulation resistance	≥ 2000 MΩ
Excitation voltage	5 ~ 15 VDC
Working temp. range	-20 ~ 70℃
Safety overload	150 %F·S
Sealing grade	IP67
Material	Stainless steel
Wiring	Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1
