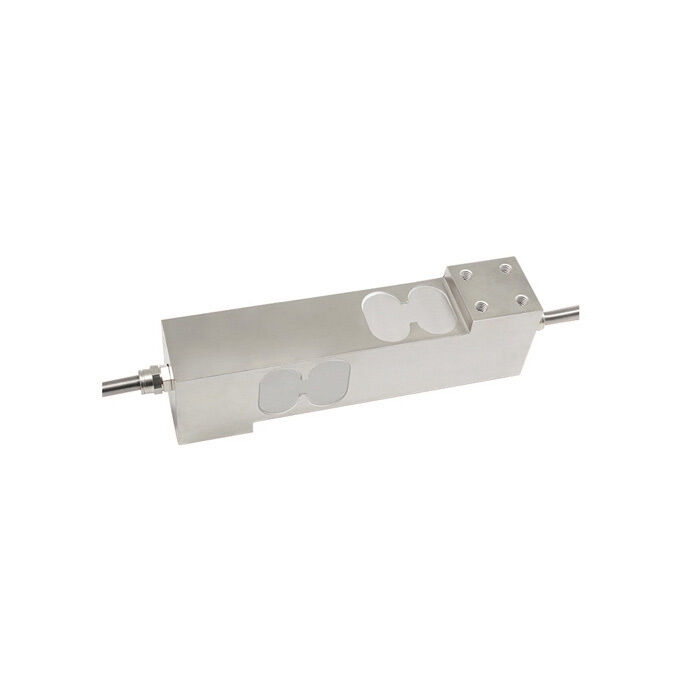

2 Axis Load Cell, 50kg/100kg/200kg/500kg to 1000kg
After purchasing one RJ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
The 2-axis load cell sensor is suitable for measuring bi-directional forces and offers accurate load ranges from 50kg, 100kg load cells to 1000kg. Its high sensitivity and stability make it ideal for industrial applications such as production monitoring and materials testing. Reliable performance and durability for a wide range of environments. Simple installation for accurate bi-directional load measurements to meet engineering and experimental requirements.
Specification
| Model |
RJ |
| Capacity |
50kg/100kg/200kg/500kg/1000kg (optional) |
| Matched Display Controller |
(Click it to the controller page) |
| Matched Transmitter |
(Click it to the transmitter page) |
| Material |
Alloy steel |
| Sensitivity |
1.0mV/V |
| Non-linearity |
0.1%F.S. |
| Hysteresis |
0.1%F.S. |
| Repeatability |
0.1%F.S. |
| Creep |
0.1%F.S./30min |
| Zero Output |
±2%F.S. |
| Zero Temperature Coefficient |
0.05%F.S./10℃ |
| Sensitivity Temperature Coefficient |
0.5%Load/℃ |
| Operating Temperature Range |
-20℃～75℃ |
| Impedance |
350Ω |
| Response Frequency |
10kHz |
| Safety Overload |
150% |
| Insulation Resistance |
≥5000MΩ/100VDC |
| Recommended Excitation Voltage |
5-15V |
| Cable Size |
φ5*4m |
| TEDS |
optional extras |
2 Axis Load Cell Dimension (unit: mm):
| Force Direction Range |
| X |
50kg |
100kg |
200kg |
500kg |
1000kg |
| Y |
50kg |
100kg |
200kg |
500kg |
1000kg |
Feature
- Highly stable and can be installed in tight spaces.
- Suspended beam sensor, high precision processing elastomer.
- Non-standard customization, anti-interference signal stability, high quality aluminum alloy.
- Widely used in automotive press fitting, automation assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing field.
