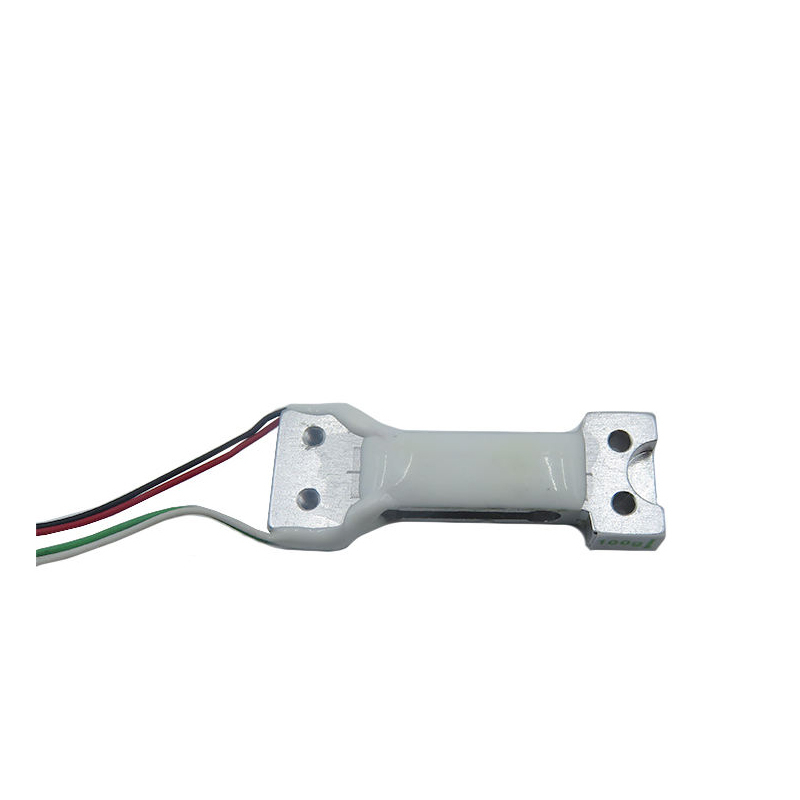

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy

Detalles del producto:

Lugar de origen:	China
Nombre de la marca:	RJ
Certificación:	CE/ROSE
Número de modelo:	RJ

Información detallada

Lugar de origen:

China

Nombre de la marca:

Certificación:

CE/ROSE

Número de modelo:

Usar:

Pesar

Descripción:

Sensor de pesaje de un solo punto

Capacidad:

3 ~ 120 kg

No linealidad:

0.03% FS

Repetibilidad:

0.03% FS

Impedancia de entrada:

405 ± 6Ω

Resaltar:

High Light

Resaltar:

50KG compression load cell

high accuracy load cell sensor

weighing load cell 0.03%FS

Información sobre el comercio

Cantidad de orden mínima:

Precio:

$5-10

Detalles de empaquetado:

cartón o cajón de madera

Tiempo de entrega:

5 a 8 días hábiles

Condiciones de pago:

L/C, D/A, D/P, T/T, Western Union

Capacidad de la fuente:

2000PC/Month

Descripción de producto

Compression Load 4 Wire Temperature Transmitter With Sensor Laod Cell

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 0

Specifications
Rated Output	mv/v	2.0±0.2
Non-linearity	%F.S	0.03%F.S
Hysteresis	%F.S	0.03
Repeatability	%F.S	0.03
Creep	%F.S/3min	0.03
Temp.effect on zero	%F.S/10℃	0.03%F.S
Temp.effect on span	%F.S/10℃	0.05%F.S
Zero balance	mv/v	±0.05
Input impedance	Ω	405±6
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	3~12
Allowed excitation voltage	VDC	3~12
Compensated temp.Range	℃	-10℃~+40℃
Operating temp.Range	℃	0℃~+40℃
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 1

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 2

Packing & Transport

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 3
