Ultra-Thin Full-Bridge Load Cell Weight Sensor

Detalles del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	RUIJIA
Certificación:	CE
Número de modelo:	RJ

Información detallada

Lugar de origen:

Porcelana

Nombre de la marca:

RUIJIA

Certificación:

Número de modelo:

Material:

Acero inoxidable

Característica:

resistente a baja temperatura

Certificación:

RoHS

Tipo de señal de salida:

Tipo analógico

Clasificación IP:

IP65

Código Hs:

9031809090

Resaltar:

High Light

Resaltar:

ultra-thin full-bridge load cell

micro load cell weight sensor

full-bridge weight sensor with warranty

Información sobre el comercio

Cantidad de orden mínima:

Precio:

USD1.5 ~2.5/piece

Detalles de empaquetado:

Embalaje de exportación estándar

Tiempo de entrega:

5-8 días laborables

Condiciones de pago:

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente:

1000 piezas/piezas por mes

Descripción de producto

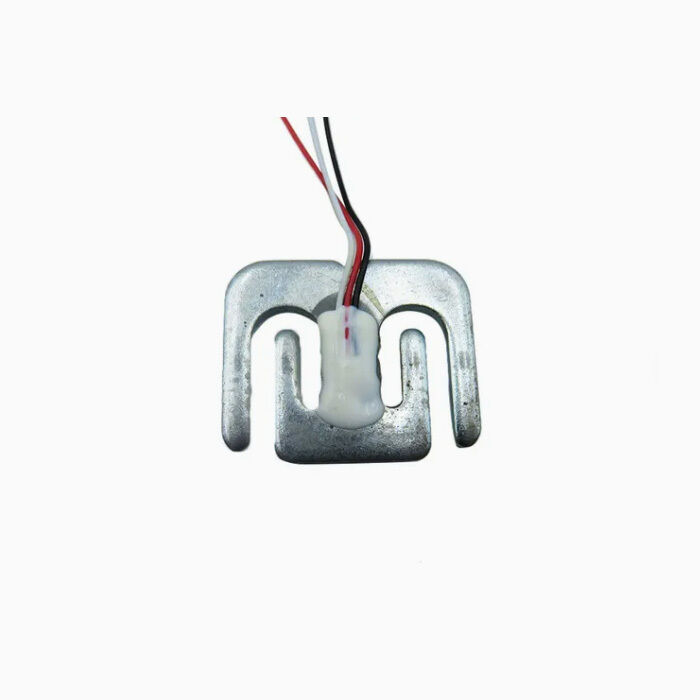

Ultra-Thin Full-Bridge Load Cell Weight Sensor

Ultra-Thin Full-Bridge Load Cell Weight Sensor 0

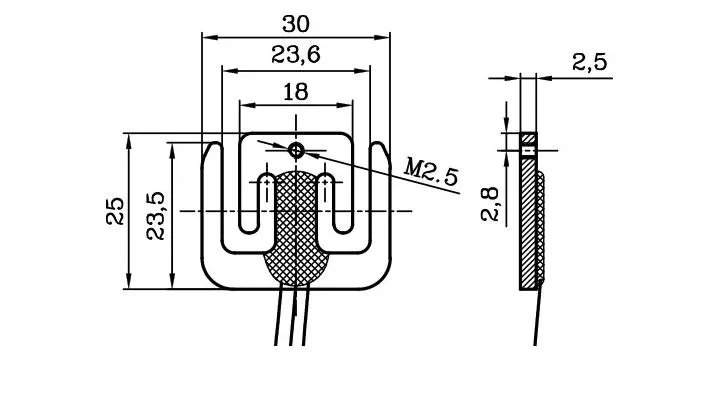

Product size drawing

Product parameter list

capacity	Kg	50Kg
Rated Output	mv/v	1.0±0.2
Non-linearity	%F.S	0.3
Hysteresis	%F.S	0.3
Repeatability	%F.S	0.3
Creep	%F.S/3min	0.3
Temp.effect on zero	%F.S/10ºC	0.3
Temp.effect on span	%F.S/10ºC	0.3
Zero balance	mv/v	±0.2
Input impedance	Ω	1000±10
Output impedance	Ω	1000±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	3~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: White:E+ Black:E-
Connection	Signal: Red:S+

Company Information

Ultra-Thin Full-Bridge Load Cell Weight Sensor 2

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
