High Precision Bending Beam Load Cell (0.5-5kg)

Detalles del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	RUIJIA
Certificación:	CE
Número de modelo:	RJ

Información detallada

Lugar de origen:

Porcelana

Nombre de la marca:

RUIJIA

Certificación:

Número de modelo:

Material:

Material de aleación de aluminio

Capacidad:

0.5-5KG

Precisión:

0,03% RO

Clase de protección:

IP65

Salida nominal:

0,8-1,0 mV/V

Uso y aplicaciones:

Escala de joyería

Resaltar:

High Light

Resaltar:

high precision bending beam load cell

5kg capacity single point load cell

0.5kg min bending beam sensor

Información sobre el comercio

Cantidad de orden mínima:

Precio:

USD1.5 ~12.8/piece

Detalles de empaquetado:

Embalaje de exportación estándar

Tiempo de entrega:

5-8 días laborables

Condiciones de pago:

L/C, D/A, D/P, Western Union, T/T, Western Union, MoneyGram

Capacidad de la fuente:

1000 piezas/piezas por mes

Descripción de producto

High Precision Bending Beam Load Cell (0.5-5kg)

High Precision Bending Beam Load Cell (0.5-5kg)

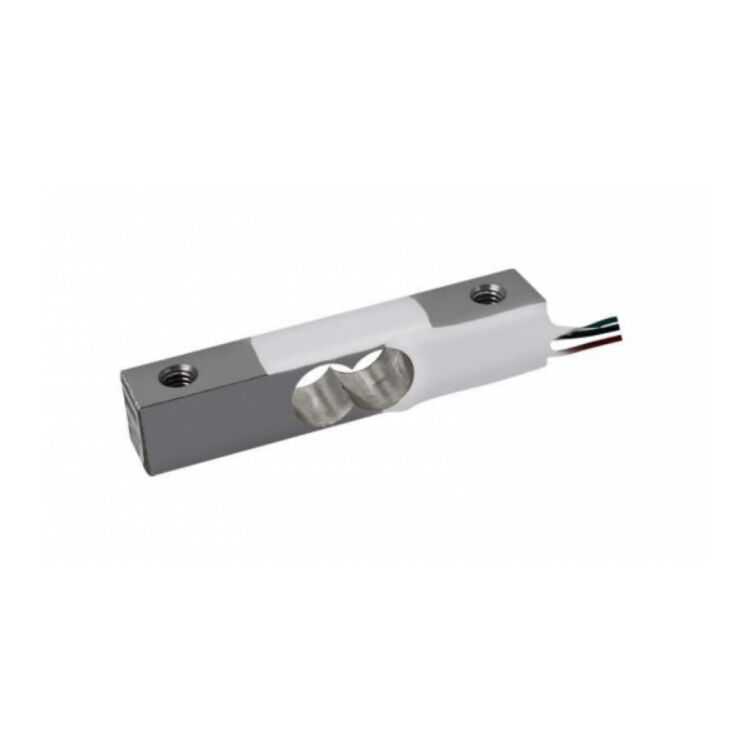

The Aluminum alloy parallel load cell sealed with white glue, high precision weighing load cell for jewelry scale with multiple accuracy levels.

Payment	100% payment before shipment
Capacities	0.5kg ; 1, 2, 3, 5 (kg)
Material	Aluminum Alloy
Dimension	52610mm (0.5kg)
Dimension	52910mm (1-5kg)
Rated Output	0.8±0.15 mV/V ; 1.0 mV/V
Protection Class	IP65
Cable	Φ0.8 × 0.3m

Key Features:

Aluminum alloy material

Capacity: 0.5-5kg

Precision: 0.03%R.O.

Protection class: IP65

Rated Output: 0.8-1.0 mV/V

Usage & Applications:

Jewelry scale

Dimension:

Specification:

Rated Capacities	0.5kg; 1,2,3,5 (kg)
Rated Output	0.8±0.15 mV/V 1.0 mV/V
Zero Balance	±0.1mV/V
Non-linearity	0.03 %R.O.
Hysteresis	0.03 %R.O.
Repeatability	0.03 %R.O.
30mins Creep	0.03 %R.O.
30mins Return	0.03 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.01%R.O./℃
Temperature Effect On Zero	0.05 %R.O./℃
Input Impedance	1115±10% Ω
Output Impedance	1000±10% Ω
Insulation Impedance	≥2000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP65
Cable	Φ0.8×0.3m
Recommended Platform Size
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)
