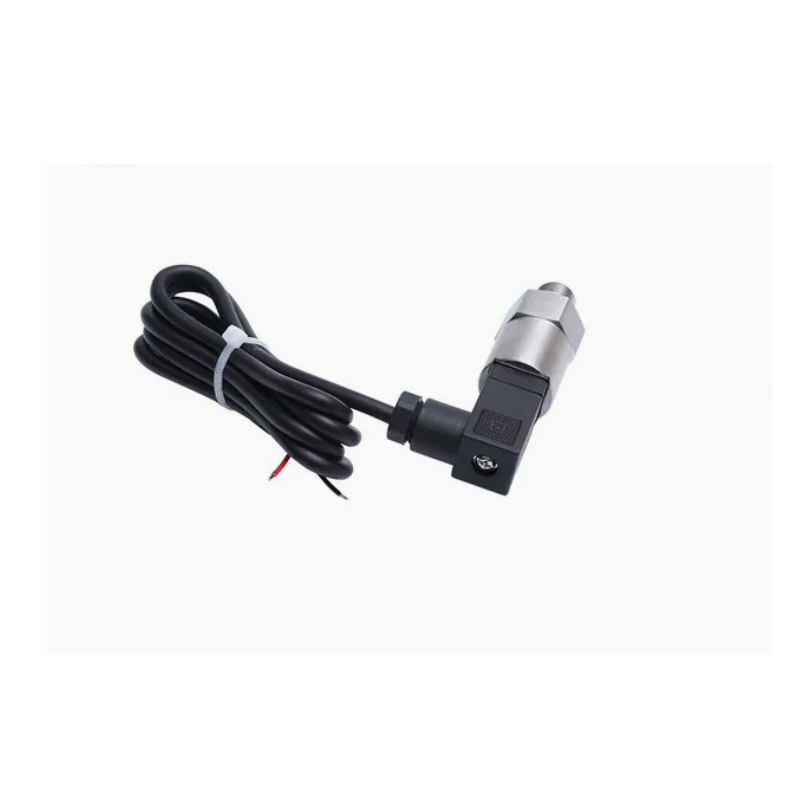

Pressure Tester Compact 4 20mA Thread Connection 0-0.1-10MPa Pressure Transmitter
Features:
It has a strong corrosion resistance
Good stability Integral structure, easy installation
Be suitable for a wide range of using
The range of medium temperature: -20ºC~80ºC
Adopting high precision components, it's will to work in the harsh environment.
Strong anti-interference design.
Support remote transmission.
Diffused silicon sensor and stainless steel case.
|
Applicable media
|
Liquid, Gas
|
|
Pressure Range
|
0-60bar
|
|
Pressure Type
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
0.5%F.S.(Typical)
|
24VDC/12VDC/5VDC/3.3V
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
power(electrical) connect
|
Parkard, M12, DIN43650, Cable outlet
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
Protection
|
IP65
|
