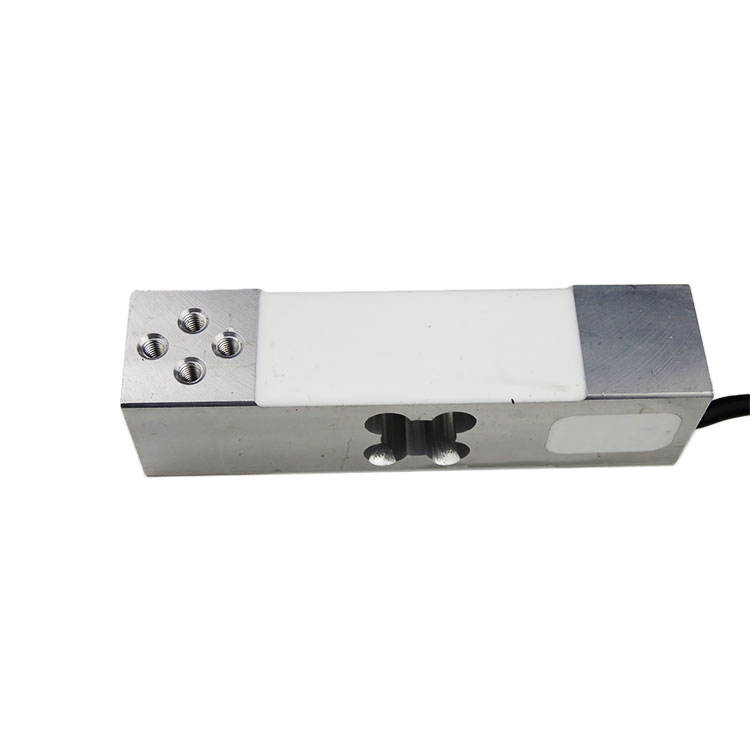

Micro Schenck Truck Scale Load Cell
Load cells are used in smart devices, smart vending cabinets, smart garbage bins, weight detection equipment, etc., and are easy to install and operate.
|
|
|
Rated Output
|
mv/v
|
2.0±0.2
|
|
Non-linearity
|
%F.S
|
0.03%F.S
|
|
Hysteresis
|
%F.S
|
0.03
|
|
Repeatability
|
%F.S
|
0.03
|
|
Creep
|
%F.S/3min
|
0.03
|
|
Temp.effect on zero
|
%F.S/10℃
|
0.03%F.S
|
|
Temp.effect on span
|
%F.S/10℃
|
0.05%F.S
|
|
Zero balance
|
mv/v
|
±0.05
|
|
Input impedance
|
Ω
|
405±6
|
|
Output impedance
|
Ω
|
350±5
|
|
Insulation resistance
|
MΩ
|
≥2000(100VDC)
|
|
Recommended excitation voltage
|
VDC
|
3~12
|
|
Allowed excitation voltage
|
VDC
|
3~12
|
|
Compensated temp.Range
|
℃
|
-10℃~+40℃
|
|
Operating temp.Range
|
℃
|
0℃~+40℃
|
|
Safe overload
|
%F.S
|
120
|
|
Ultimate Overload
|
%F.S
|
150
|
|
Connection
|
Excitation: Red:+ Black:-
|
|
Signal: Green:+ White:-
|
Packing & Transport
FAQ
Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information:
Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
